Step by Step from Zero to Streaming SRT with Red5 Cloud
To get started with Red5 Cloud, you will need to create an account and set up a stream. This guide will walk you through the process of creating an account, setting up a stream from OBS Studio, and putting a player into a webpage.
Prerequisites:
- Red5 Cloud account: Limited Access Only. Instructions for creating an account can be found here.
- OBS Studio: Download here.
- OBS Studio configured for video streaming from either a local file or a local camera: Quick Start.
Configure the SRT stream in Red5 Cloud

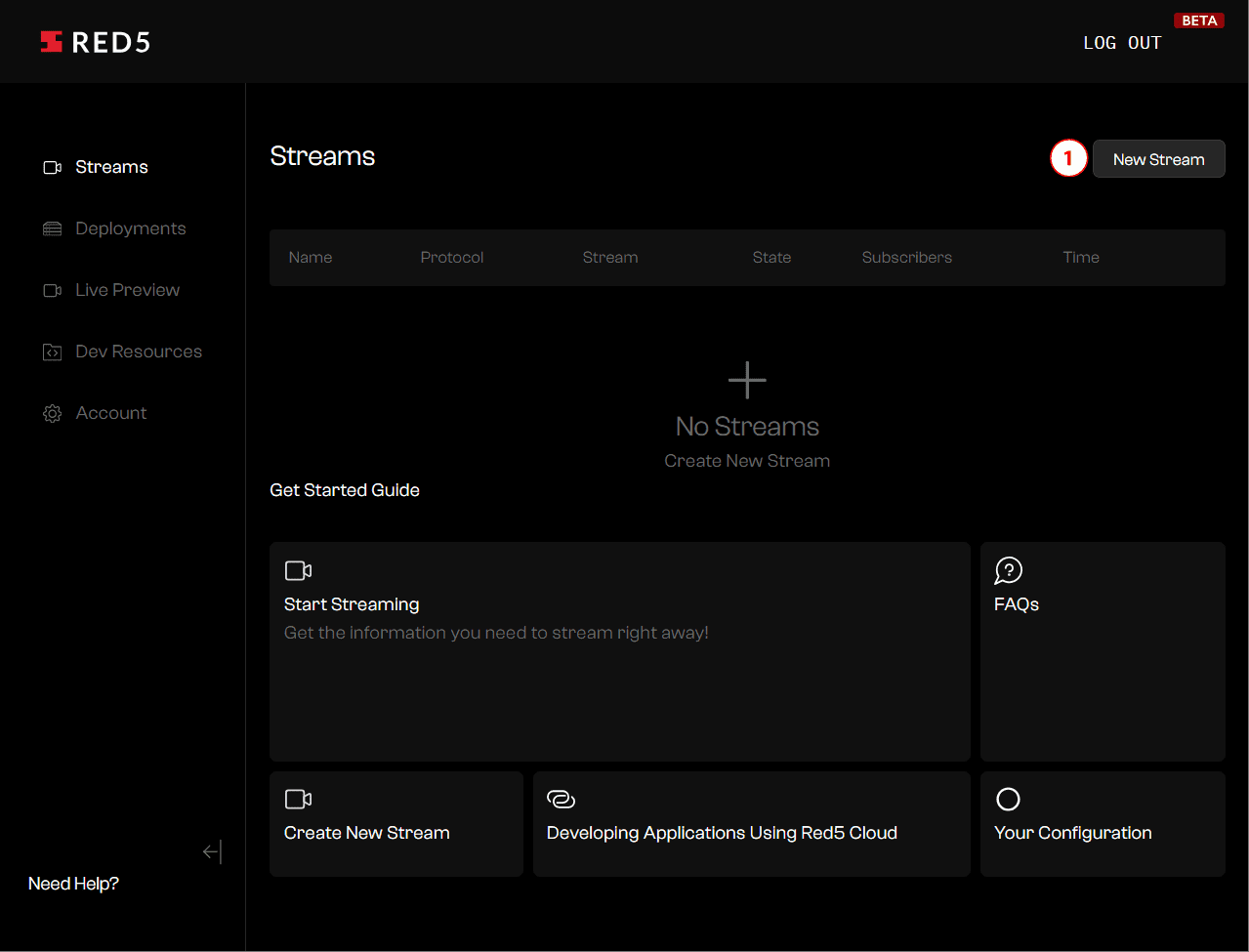

Once your Red5 Cloud account is fully configured and deployed, click on “New Stream” (1).

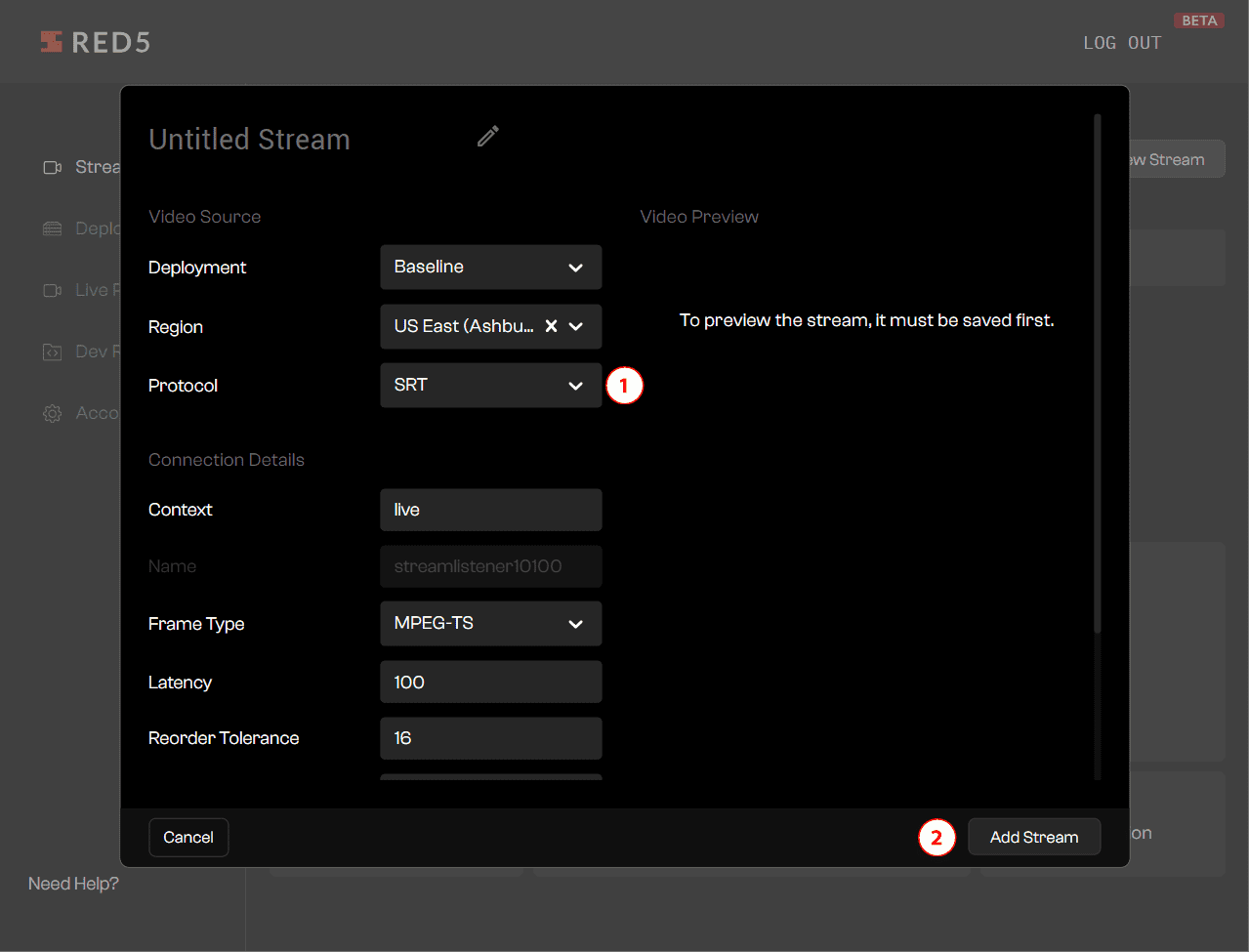

Select SRT as the protocol (1) and click “Add Stream” (2).

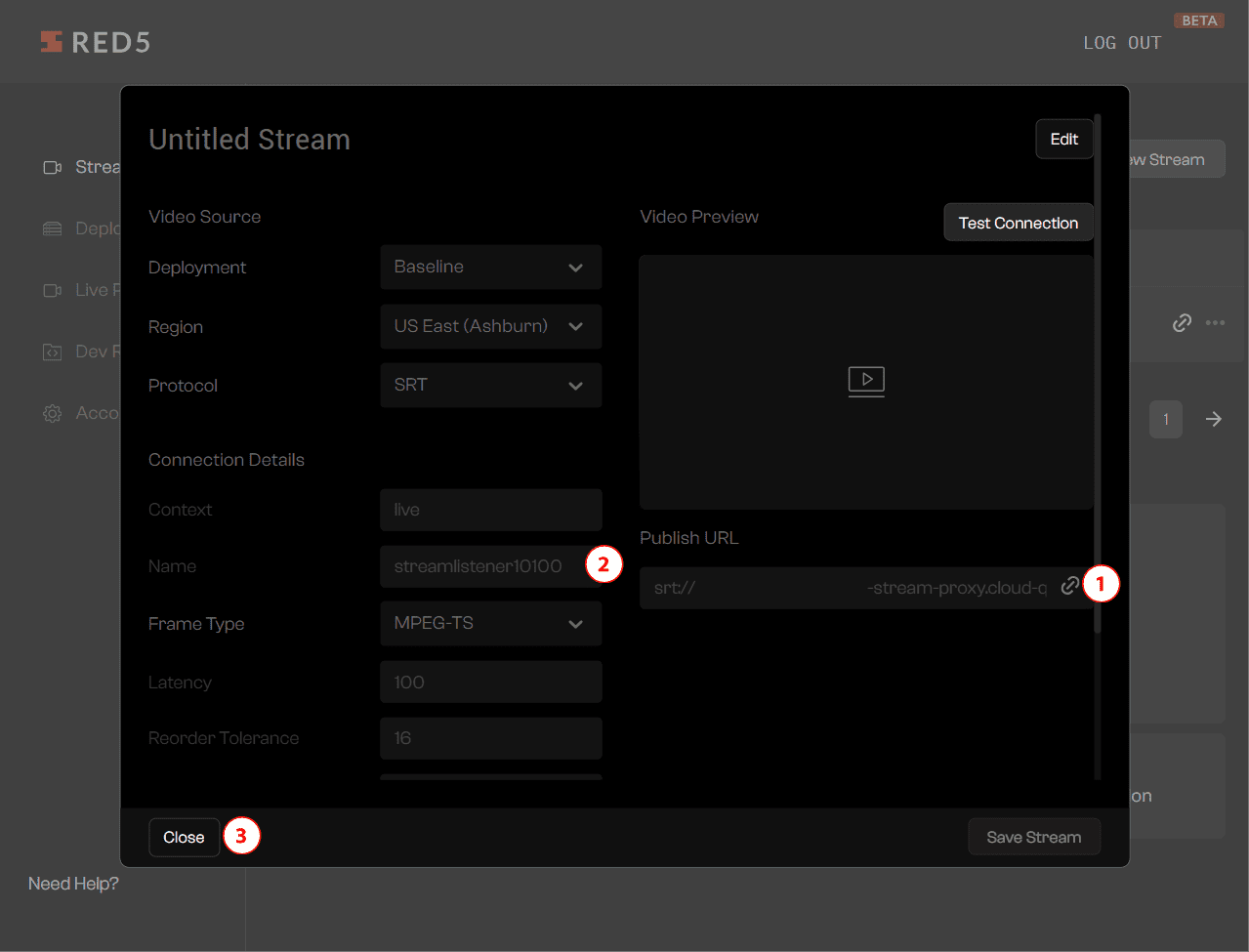

Click the link icon (1) to copy the base of the SRT URL. Save that and then copy the stream name (2). Append “/live/” and the stream name to the base SRT URL. This is the SRT URL you will use to configure OBS. Click “Close” (3).
Configure OBS Studio

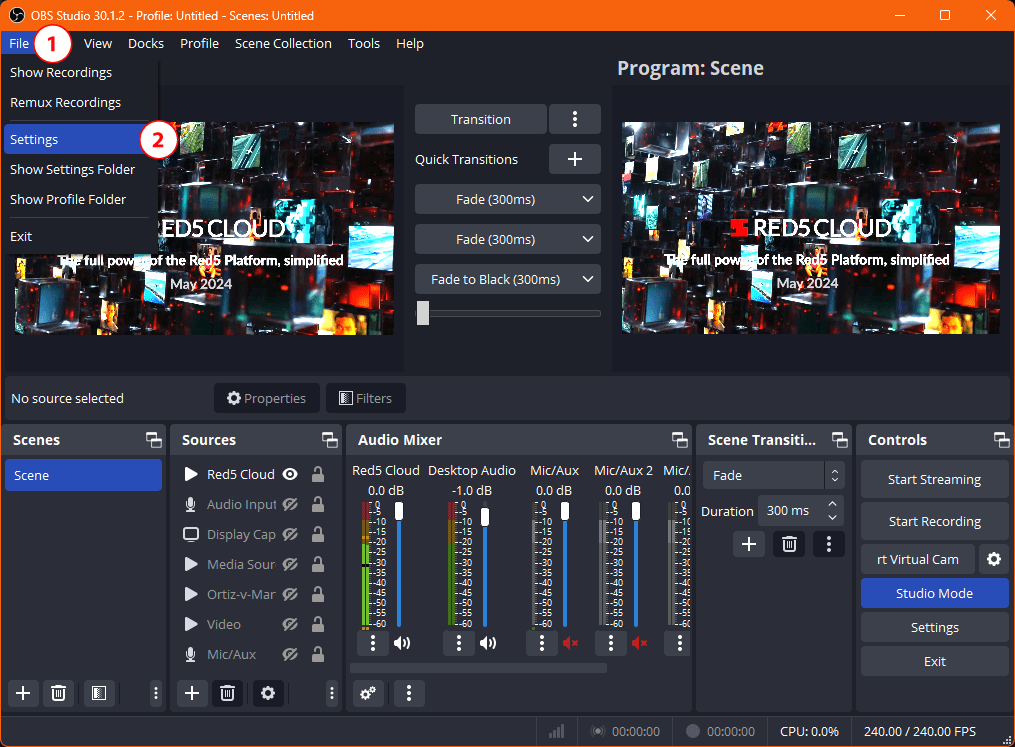

Open OBS Studio and navigate to File (1) then Settings (2).

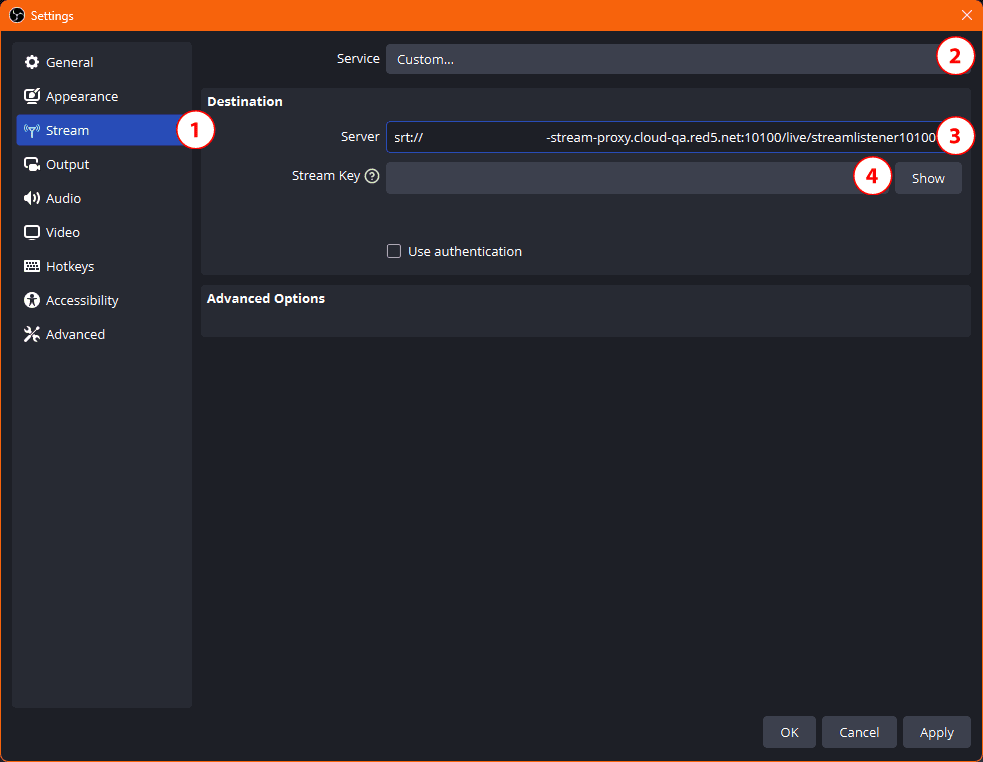

Select the Stream tab (1) and then select “Custom…” from the Service dropdown (2). Paste the SRT URL into the Server field (3). The Bearer Token field should be empty (4).

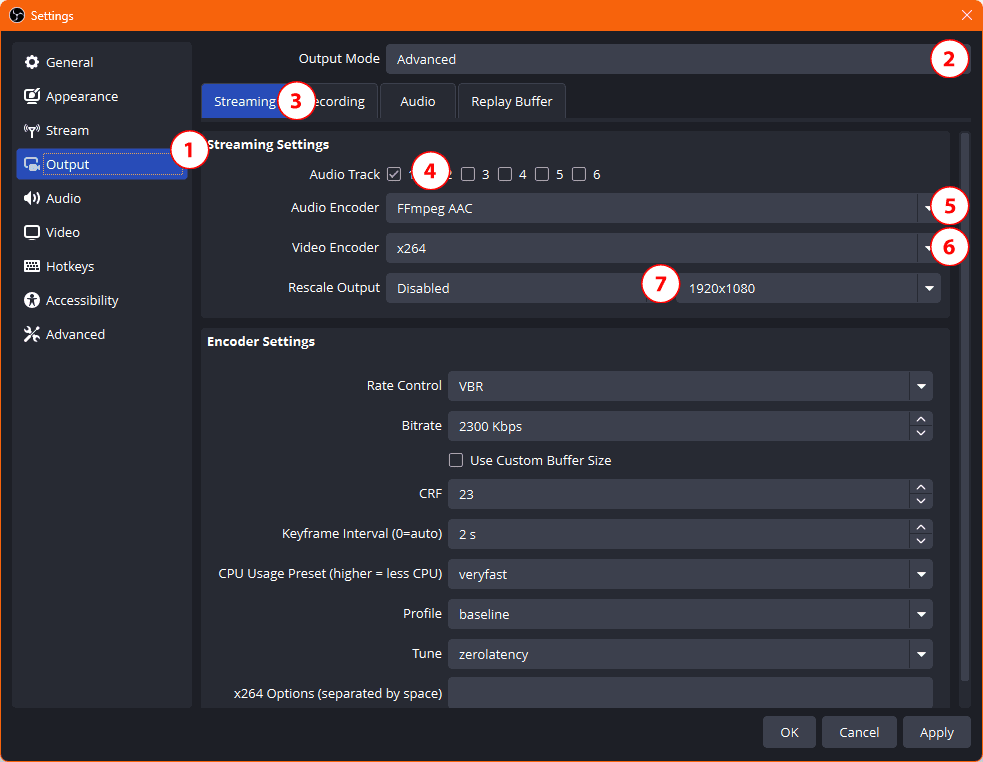

Select the Output tab (1) and then select the “Advanced” Output Mode from the dropdown (2). Select the “Streaming” tab (3) and then the first Audio Track (4). Ensure the Audio Encoder setting is set to “FFmpeg AAC” (5) and the Video Encoder is set to x264 (6). “Rescale Output” should be Disabled (7).

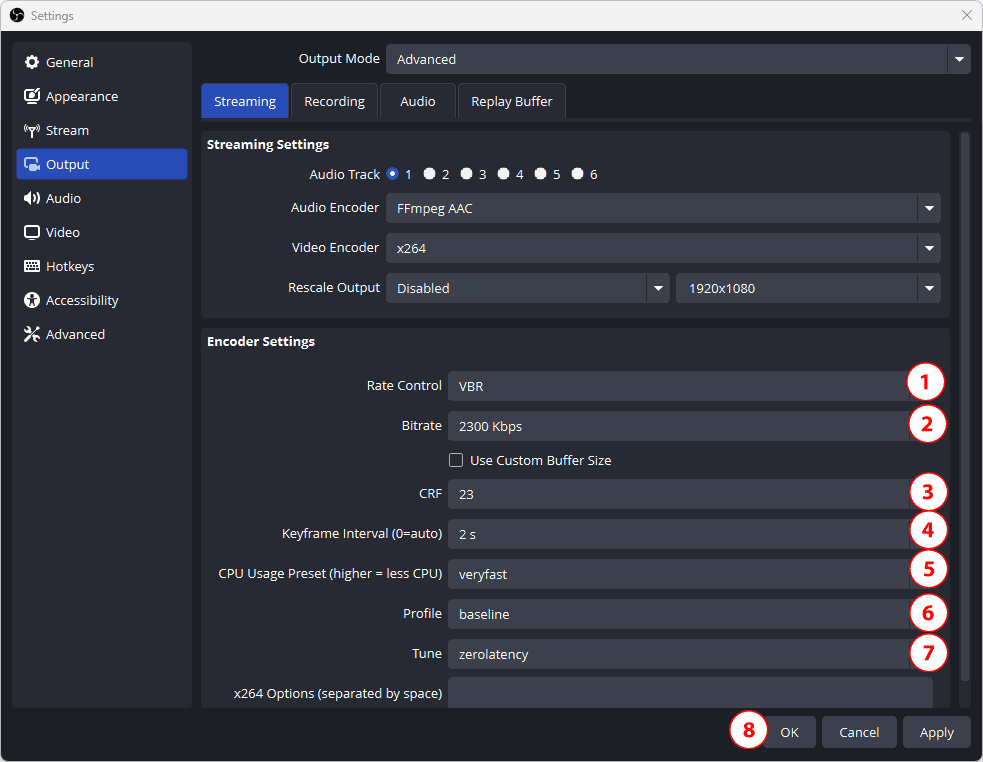

Set the “Rate Control” to VBR (1) and the bitrate to something appropriate for the video you are streaming (2) (bitrate information). Use a CRF value of 23 (3). Select a 2s Keyframe (4), use “veryfast” for the CPU Usage Preset (5), and set the Profile to “baseline” (6). The “Tune” setting should be set to “zerolatency” (7) to ensure that an additional buffer is not added to your stream. Save your changes by clicking “OK” (8).

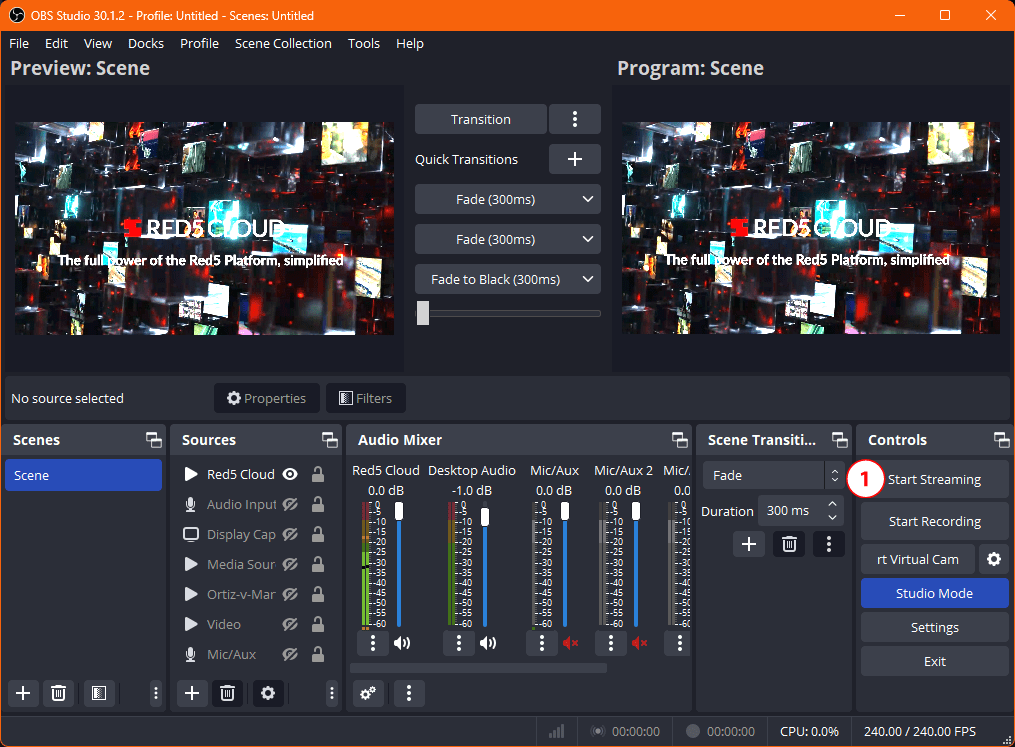

Start your stream by clicking the “Start Streaming” button (1).

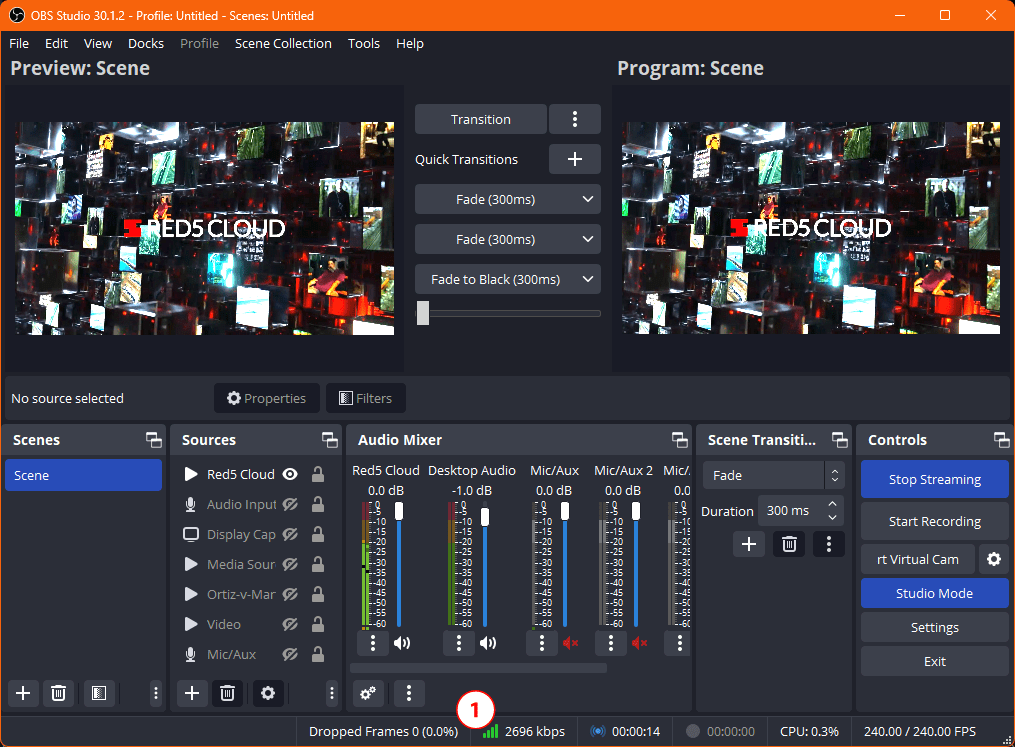

You should see the stream status in the bottom right corner of OBS Studio (1). If you see “green” you are connected and have a quality stream.

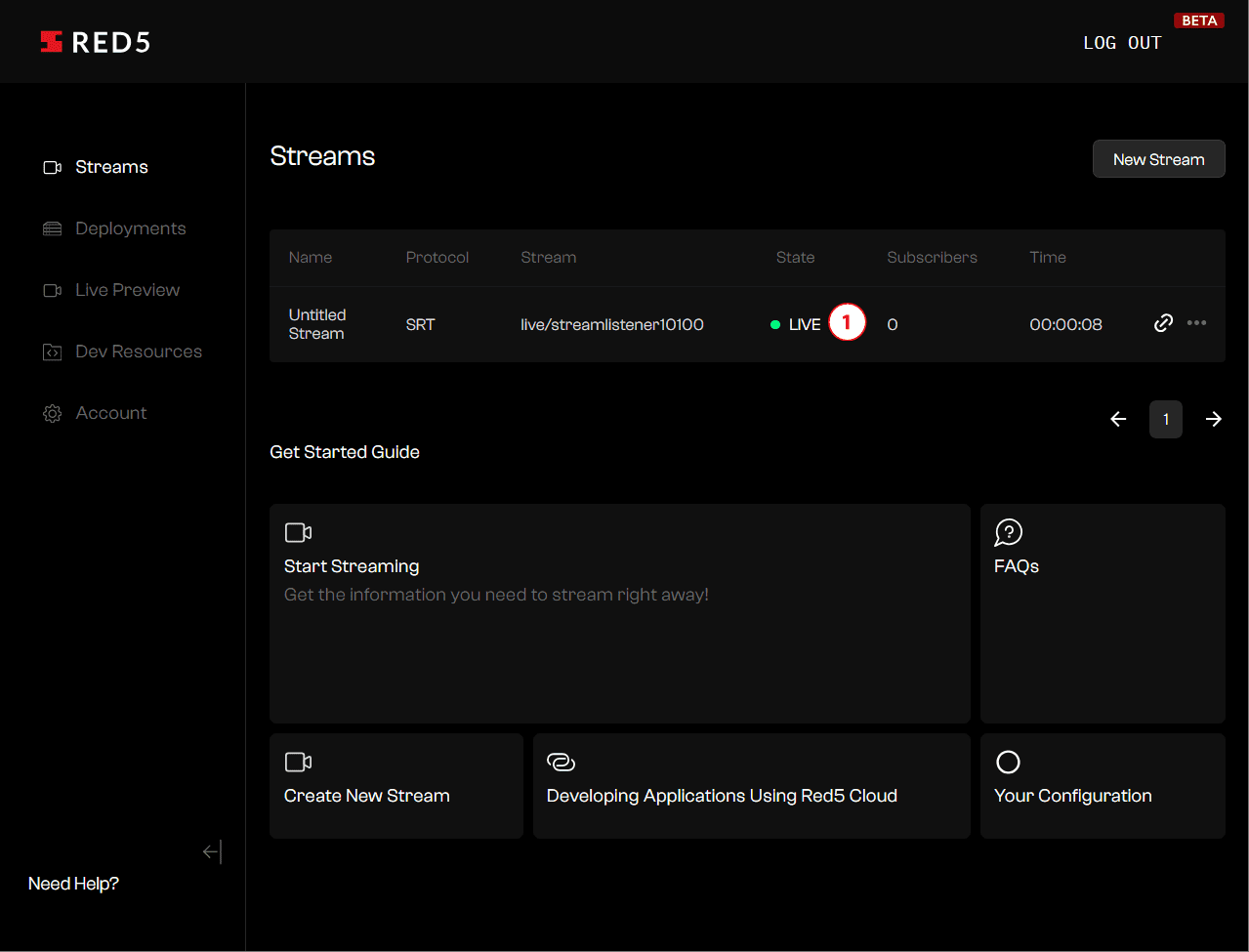

When you return to Red5 Cloud, you will notice that the status of the SRT stream is LIVE (1).
Create a Player
To create a player you will copy the Embedded Player information from the Pub/Sub Details of your deployment. This information will be used to create a webpage with a player. NOTE: the player example has a stream name of ../live/mystream. For this SRT stream, the stream name is ../live/streamlistener10100. Be sure to update this in your code.
Edit an HTML file on your webserver and paste the Embedded Player code you copied from the Pub/Sub Details page. The HTML file should look something like this:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<title>Red5 Player Embed</title>
</head>
<body>
<iframe
frameBorder="0"
allow="camera https://red5pro.github.io; microphone https://red5pro.github.io;"
src="https://red5pro.github.io/red5pro-webrtc-sdk?host=rc-userid-abcdefg1234.cloud.red5.net&app=live&stream_name=streamlistener10100&api_version=v1&node_group=default&mode=sub">
</iframe>
</body>
</html>

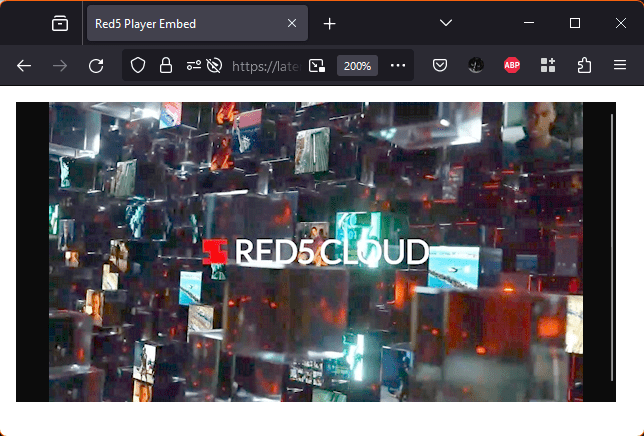

Save the file and open it from a webbrowser. You should see your stream playing in the player:
