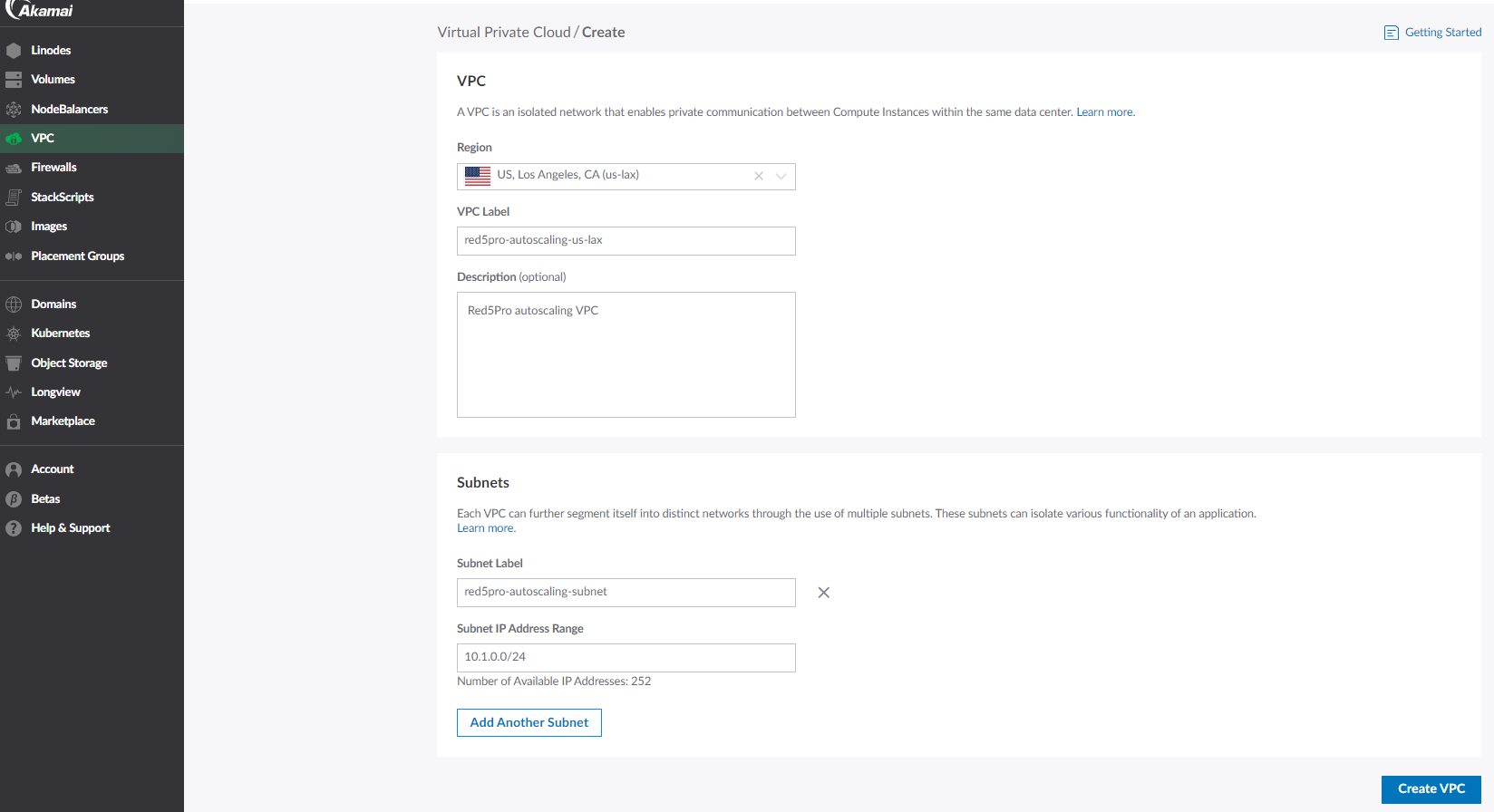

Create a Virtual Private Cloud (VPC)

• From the left-hand side of the console click on VPC.
• Now click on Create VPC.

Basic VPC information

• Select region from drop down. Eg: US, Los Angeles, CA (us-lax)
• VPC Label: red5pro-autoscaling-us-lax.


  Kindly use region name as suffix for specifying label to VPC. Eg: <VPC_LABEL>-<VPC_REGION>.

• VPC Description: Provied brief description to VPC (Optional).

Configure VPC Private Subnet

• Subnet Label: red5pro-autoscaling-subnet.

• IPv4 CIDR block: 10.1.0.0/24.

  • If want to create multiple subnets, click on Add Another Subnet and specify CIDR and label.

• Final, click on Create VPC.

Please record Subnet name and Region to your checklist for the NODE_SUBNET_NAME, NODE_LINODE_REGION parameters, it will be using in API calls to Stream Manager to create node group config.

Example:

Create Firewalls

We need to have 2 firewall rules:

1. Firewall for Stream Manager instance
2. Firewall for Red5 Pro nodes

Firewall for Stream Manager

Go to Linode Console → Firewalls → Click on Create Firewall

• Label: red5pro-autoscaling-sm-sg (Must be between 3 and 32 characters in length)
• Default Inbound Policy: Accept
• Default Outbound Policy: Accept
• Final click on Create Firewall
• Add Inbound Rules: Linode Console → Firewalls → Select created firewall → Click on Add Inbound Rule
  • Create separate rules for each ports

Example:

Security group for Red5 Pro nodes

Go to Linode Console → Firewalls → Click on Create Firewall

• Label: red5pro-autoscaling-node-sg (Must be between 3 and 32 characters in length)
• Default Inbound Policy: Accept
• Default Outbound Policy: Accept
• Final click on Create Firewall
• Add Inbound Rules: Linode Console → Firewalls → Select created firewall → Click on Add Inbound Rule
  • Create separate rules for each ports

Please record Network Securiity Group name for Red5 Pro nodes to your checklist for the NODE_SECURITY_GROUP parameter, it will be using in API calls to Stream Manager to create node group config.
