Create a Virtual Cloud Network (VCN)

Go to OCI Networking → Virtual cloud networks

• Push button VCN Wizard
• Choose Create VCN with Internet Connectivity

Basic information

• VCN Name: red5pro-autoscaling
• Compartment: <choose compartment>

Configure VCN

• VCN IPv4 CIDR block: 10.0.0.0/16
• IPv6 prefixes: disable
• Use DNS hostnames in this VCN: disable

Configure public subnet

• IPv4 CIDR block: 10.0.0.0/24

Configure private subnet

• IPv4 CIDR block: 10.1.0.0/24

It will create automatically VCN, Subnets, Route table, Internet Gateway and default Security lists.
Please record Subnet name to your checklist for the NODE_SUBNET_NAME parameter, it will be using in API calls to Stream Manager to create node group config.

Create Network Security Groups

We need to have 2 security groups:

1. Security group for Stream Manager instance
2. Security group for Red5 Pro nodes

Security group for Stream Manager

Go to OCI Networking → Virtual cloud networks → select the newly created VCN → Network Securiity Groups

• Create Network Securiity Group
• Name: red5pro-autoscaling-sm-sg
• Create In Compartment: <choose the same compartment as for VCN>

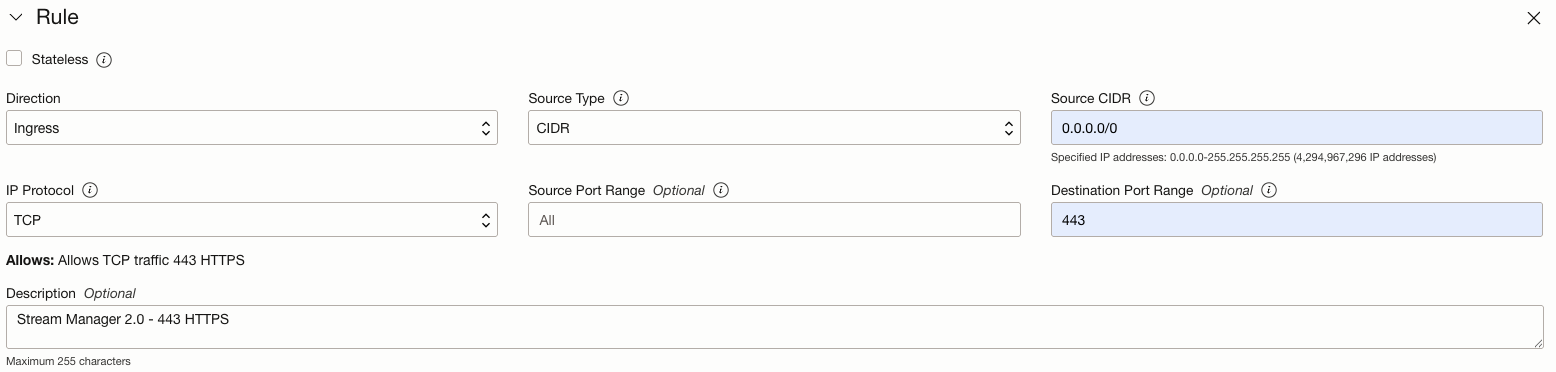

• Create Rules to open Ingress ports for Stream Manager 2.0 instance

Example:

Security group for Red5 Pro nodes

• Create Network Securiity Group
• Name: red5pro-autoscaling-node-sg
• Create In Compartment: <choose the same compartment as for VCN>
• Create Rules to open Ingress ports for Red5 Pro nodes

Please record Network Securiity Group name for Red5 Pro nodes to your checklist for the NODE_SECURITY_GROUP parameter, it will be using in API calls to Stream Manager to create node group config.
