Red5 Documentation

Stream Manager 2.0 Node Group Config

The Node Group Config is a JSON object that defines the configuration of the Red5 Pro Node Group. This config is used by the Stream Manager to deploy and manage the Red5 Pro nodes in the Node Group. The JSON object has the following structure:

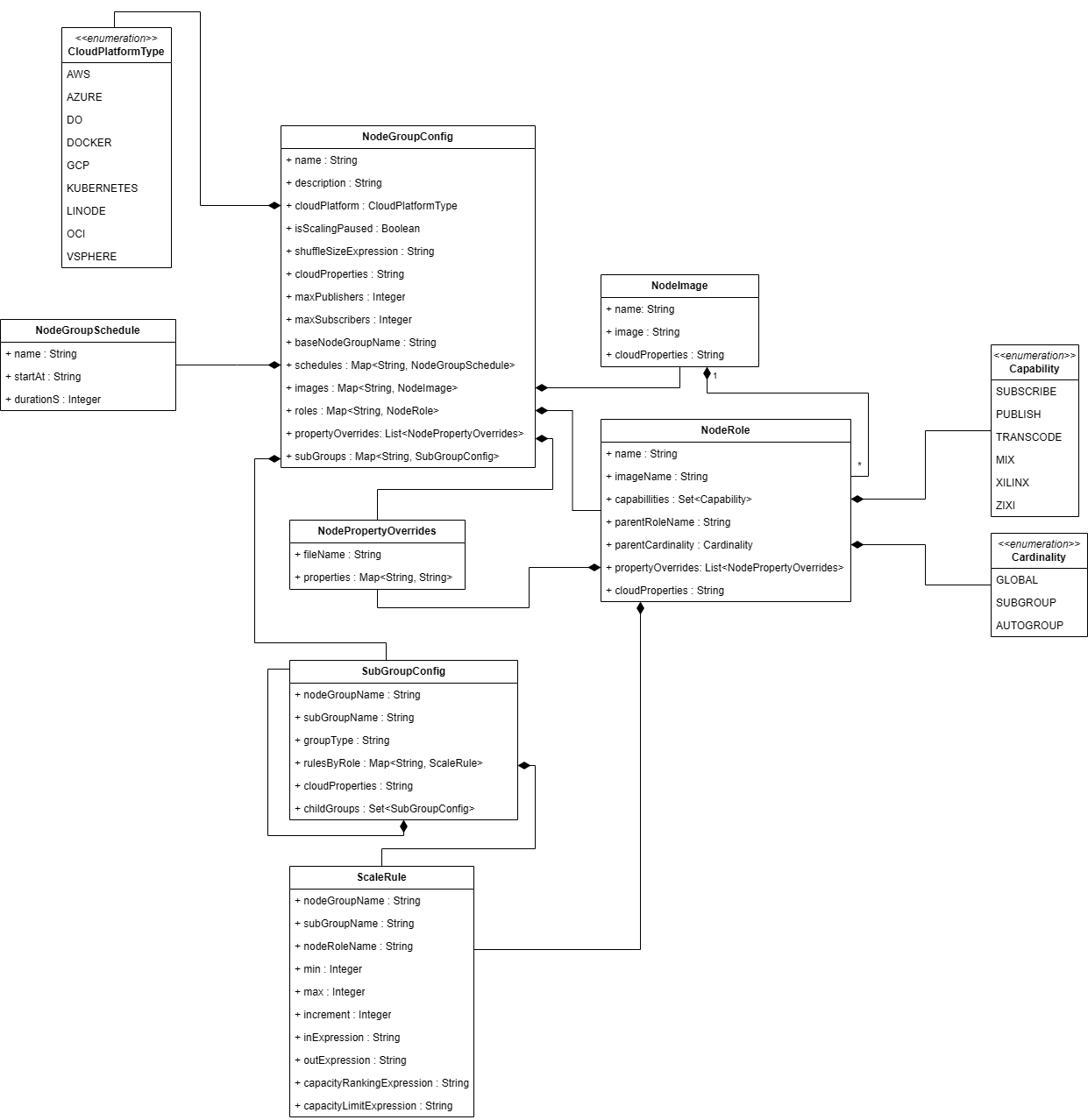

Diagram of the Node Group Config JSON Object Structure
