Overview

JWT (JSON Web Token) authentication provides a stateless, secure authentication mechanism for Red5 Pro streaming applications. Unlike round-trip authentication which validates credentials with a remote server for each stream operation, JWT authentication validates tokens locally using cryptographic signatures.

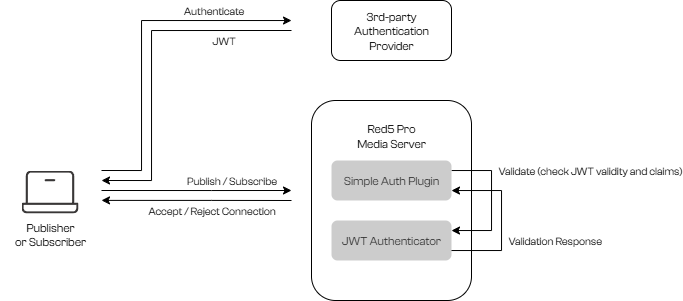

Authentication Flow

The JWT authentication flow consists of three main components:

1. Third-Party Authentication Provider – External identity service or authentication server that issues JWTs to authenticated users
2. Client Application – Receives JWT from auth provider and includes it in connection parameters when connecting to Red5 Pro
3. Red5 Pro Server – Validates JWT locally using shared secret, without contacting external services

Validation Process

When a client attempts to connect and publish or subscribe:

1. Client obtains JWT from your authentication provider/identity service
2. Client passes JWT as a connection parameter to Red5 Pro
3. Red5 Pro extracts and validates the JWT:
   • Verifies cryptographic signature using shared secret
   • Checks expiration timestamp
   • Validates issuer claim (if configured)
   • Validates role restrictions (publisher/subscriber, if specified)
   • Validates transport restrictions (if specified)
   • Validates room/scope restrictions (if specified)
4. If valid, connection is allowed; otherwise, it is rejected

Key Features

Local Validation

All validation occurs locally on the Red5 Pro server using the shared secret. No external service calls are made during stream operations, ensuring low latency and high performance.

Stateless Authentication

JWTs are self-contained with all necessary claims. The server does not maintain session state, making it ideal for distributed and scaled environments.

Role-Based Access Control

JWTs can specify distinct roles for publishers and subscribers, allowing fine-grained control over who can publish versus who can only subscribe.

Transport and Room Restrictions

Optional claims allow restricting tokens to specific protocols (RTMP, RTSP, WHIP, WHEP) and specific rooms/scopes within your application.

Security Model

The security of JWT authentication relies on:

• Shared Secret – A cryptographic secret shared between your JWT issuer and Red5 Pro server
• Token Expiration – Time-limited tokens that expire automatically
• Signature Verification – Cryptographic validation ensuring tokens haven’t been tampered with
• Claim Validation – Server-side enforcement of role, transport, and room restrictions

The shared secret must be kept secure and should be the same secret used by your JWT issuing service to sign tokens.
